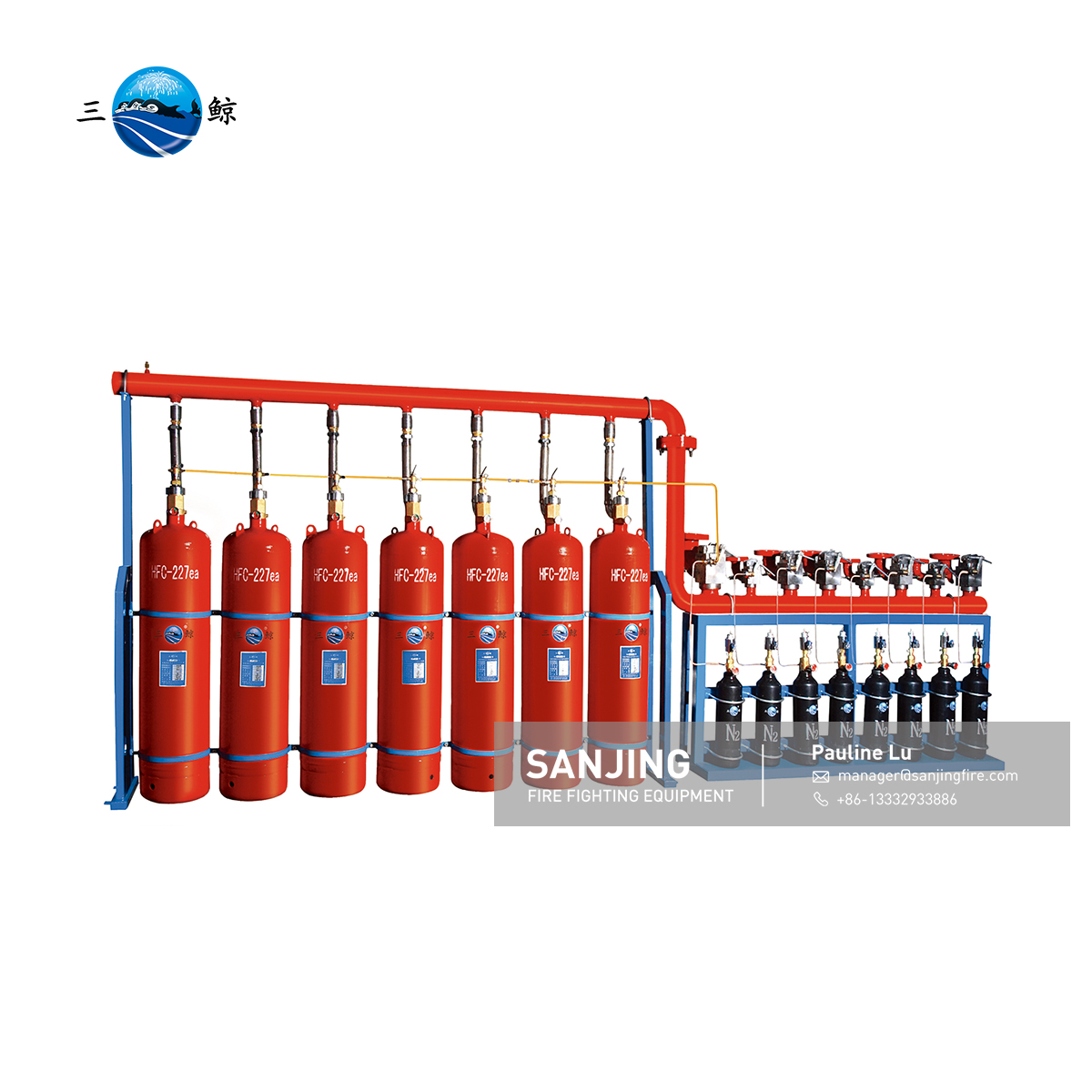

BackFM200 Fire Suppression System
Caution: Cost of this system should be calculated according to your specific protecting zone, the prices mentioned here are just for storage cylinders.

1) Storage Cylinder Capacity: 40-180 Litters
2) Filling Pressure: 4.2MPa
3) Max. Working Pressure (@50℃): 5.3MPa
4) Concentration (kg/m³): η<=950
5) Working Voltage & Current: DC24V, 1.3A
6) Ambient Temperature: 0~50℃
7) Spray Duration: <=10S
8) Start-up Methods: Automatic Electric, Manual Electric or Physical Manual.
9) Automatic Start-up Delay Time: Adjustable From 0-30s

Fm200 (HFC-227ea, Heptafluoropropane) is a colorless, odorless and low-toxic gas which is liquefied stored in cylinders and dispensed into the hazard as a non-conductive vapor to put out the fire.
It is especially suitable for electrical fire, and also available for Class A, B and C fire. It is usually used in computer room, telecommunications facility, library, archive store, base station, battery room, laboratory, etc.

Caution: Cost of this system should be calculated according to your specific protecting zone, the prices mentioned here are just for storage cylinders.
